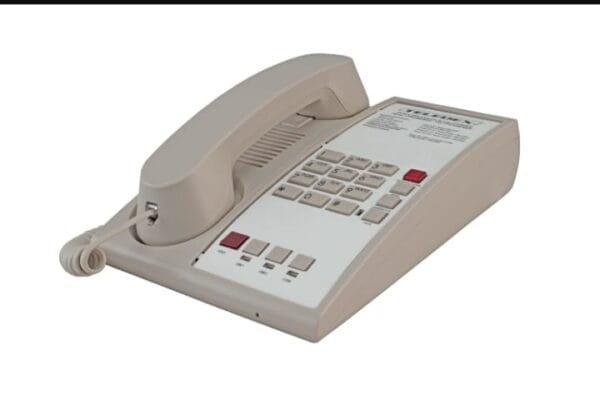

Teledex Hotel Phone D Series Two line D200L2E ASH

Teledex D Series
•  Two-Line Telephone
• Optional USB charging ports (2)*
• Optional Speakerphone – Hands-free conversations*
• Patented OneTouch voice mail retrieval*
• Guest Service Keys – Up to ten for access to hotel services
• Hidden Programming Key – Eliminates arbitrary reprogramming of
autodial keys
• ADA Handset Volume Boost – Three (3) distinct levels, compliant
with HAC/VC and FCC requirements
• Raised Red Message-Waiting Lens – Easily seen from any area in
the guestroom
• Message-Waiting Circuitry – Message Waiting will activate on high
or low voltage; Guarantees operation of up to 7 phones for suite
applications, with an extra-bright message-waiting lamp
• Mute Key – Deactivates microphone during speakerphone and
handset calls; a red LED indicates activation**
• Speaker On/Off Key – With red LED for easy speakerphone
activation*
• Electronic 3-way Call Conference Function with LED indicator for
convenient multi-line conversations***
• Hold Key – Places the active line on hold so the second line can be
used or a conference call initiated***
• Hold Release Detection Circuit – Releases calls on hold when line is
accessed by any telephone
• Redial Key – Automatically redials the last number dialed (most
models)
• Flash Key (most models)
• Textured Finish – Provides durable resistance against scratches and
smudges
• Full-Length Paper Faceplate – Allows user-friendly customization
• Desk or Wall Mountable – Provides placement flexibility
• Available in Ash
SPECIFICATIONS
Standard Color:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ash
Footprint (Desk): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . 6.25” (15.88cm) (w) x 9.5” (24.13cm) (l) x 2.5” (6.35cm) (d) (without handset);
. . . . . . . . . . 6.25” (15.88cm) (w) x 9.5” (24.13cm) (l) x 3.75” (9.53cm) (d) (with handset)
Footprint (Wall): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . 6.25” (15.88cm) (w) x 9.5” (24.13cm) (l) x 2.13” (5.41cm) (d) (without handset);
. . . . . . . . . . 6.25” (15.88cm) (w) x 9.5” (24.13cm) (l) x 3.25” (8.23cm) (d) (with handset)
Weight:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.90 lbs. (0.86kg)
Packaging: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 per carton
Faceplate Size:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.13” (w) x 8.75” (l)
FCC Specifications:. . . . . . . . . . . . . . Meet or exceeds Part 15, Subpart J, Class A, Part 68
Safety Standard: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ETL and CE
Operating Voltage:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 to 56 VDC Non-Polarity
Signaling:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Standard 12 tone
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DTMF no Pulse/Rotary dialing
Flash Timing:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mS to 1000 mS
Ringer Equivalence: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Z
Cabling: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 pair minimum
Registered Connector:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USOC RJ-14
Handset:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hearing Aid compatible
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Standard “K” type
Handset Cord:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-foot coil cord
Line Cord: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-foot, 2 pair
Optional USB Charging Ports:. . . . . . . . . . Power Supply: Input 100 – 240V @ 50/60Hz,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Output 5V @ 4A. USB output: 2 type A,
